FPC soft and hard combination board price is high

The birth and development of FPC and PCB gave birth to a new product of soft and hard combination board. Therefore, the combination of soft and hard board, is the flexible circuit board and hard circuit board, after pressing and other processes, according to the relevant process requirements combined together, formed with FPC characteristics and PCB characteristics of the circuit board. Because in the production of soft and hard combined board is difficult, many details, before shipment, generally to carry out a full inspection, so now the hard circuit board and soft circuit board separate production more!

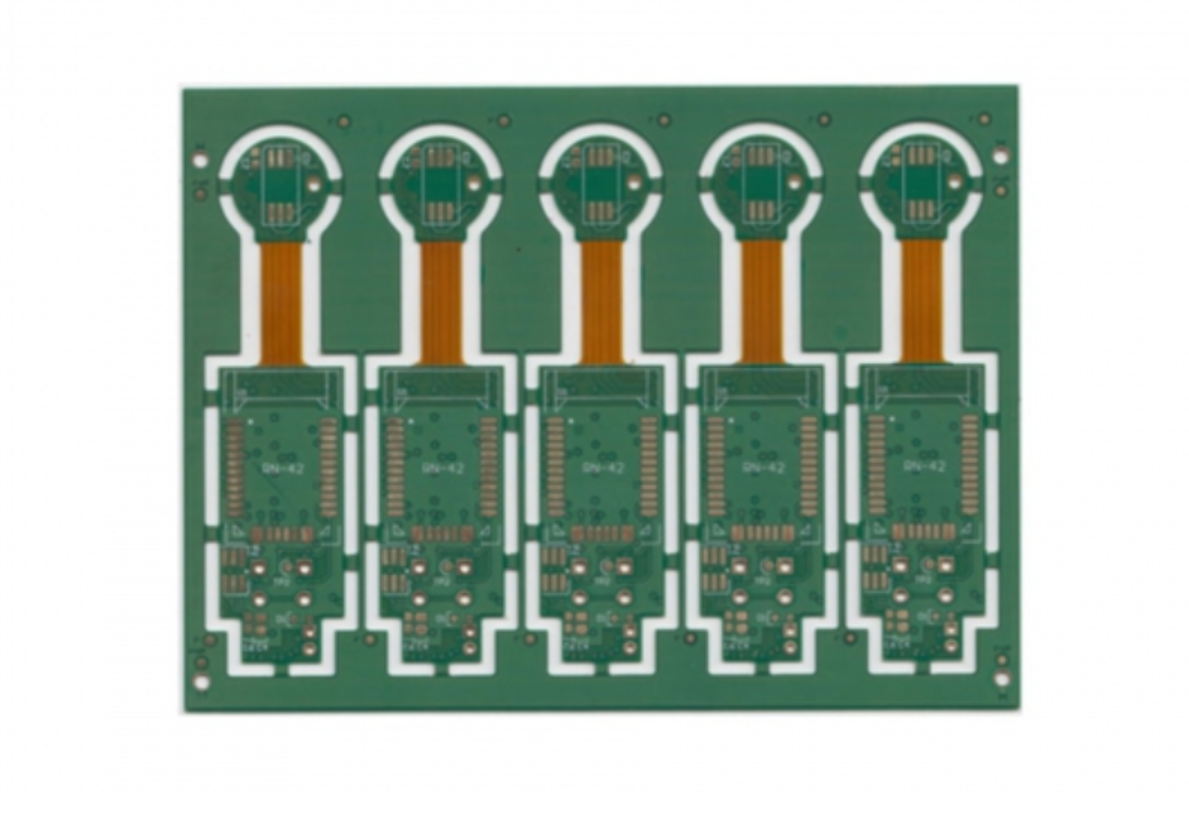

FPC soft and hard combination board price is high

What is the reason for the high price of FPC soft and hard combination board?

Advantages of soft and hard circuit board: the soft and hard combination board has the characteristics of FPC and PCB at the same time, therefore, it can be used for some products with special requirements, both a certain flexible area, also have a certain rigid area, to save the internal space of the product, reduce the volume of finished products, improve the product performance has a great help.

Soft and hard combined circuit board shortcomings: soft and hard combined board production process is various, difficult to produce, the rate of good product is low, the material, manpower is more, therefore, the production cycle is longer, the price is more expensive.

Flexible circuit board and rigid circuit board is very different, it is a polyimide or polyester film as a substrate made of a highly reliable, excellent flexible printed circuit board, its wiring density is high, light weight, thin thickness, etc., Therefore, in the design and production need to be very strict implementation, it is mainly used in mobile phones, notebook computers, PDA, digital cameras, LCM and other electronic products. Its design and rigid circuit board design is not the same, so what is the focus of flexible circuit board design? Now xiaobian will give you a formal introduction to its main points:

1, flexible circuit board in the design should pay attention to three-dimensional space, because it can save space and reduce the plate layer in the application of bending and flexibility.

2. Compared with rigid boards, flexible circuit boards require lower tolerances and allow a greater tolerance range.

3. Because the wings of the flexible circuit board can be bent, it is designed to be slightly longer than required.

4, the characteristics of the flexible circuit board should be shown.

The above is about: FPC soft and hard combination board price is high, I hope to help you, if there is no clear place, please contact our customer service for you to answer.
